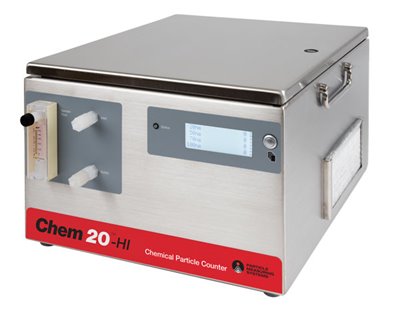

Chem 20™ 케미컬 파티클 카운터

Chem 20™ 케미컬 파티클 카운터
20nm 파티클을 측정할 수 있는 세계 최초 20nm의 케미컬 파티클 카운터 입니다.

더 읽기

제품 상세 내역

  • Advanced laser optics and detectors enable 20 nm sensitivity in chemicals
  • On-board chemical flow meter to set sample flow
  • First particle counter optimized for low and high refractive index chemicals for improved performance:
    • Chem 20 sensor, for chemicals with lower indices of refraction
    • Chem 20-HI sensor, tailored for sulfuric acid and other higher-index chemicals
  • On-board leak detection to provide alarm upon an internal chemical leak
  • Low-flow detector and alarm to ensure consistent data
  • Bubble detector to optimize data and protect sensor
  • Local data display
  • Detect 20 nm PSL & 9 nm Au particles in real time
  • Detect yield-limiting particles (not possible with competitive technologies)
  • React quickly to particle excursions long before surface scan or yield data are available
  • Optimize chemical delivery systems from the loading dock to point-of-process
  • Tighten process control limits through improved sample population statistics
  • Optimize instrument operation for very dirty or very clean applications using two view modes, extending product application space
  • Support legacy data acquisition systems with flexible communications
  • Real-time particle monitoring within chemical distribution systems
  • Point-of-process monitoring
  • Chemical packaging operations monitoring
  • Chemical filter performance and efficiency characterization
  • Performance testing of chemical handling components
